Solder smoke looks harmless curling up off the tip of your iron, but breathe it in every session for a few months and it stops feeling harmless. One maker decided the fix didn't need to come from a store — it needed to come off their own printer.
That curling smoke isn't just water vapor. It's mostly vaporized rosin flux, the stuff that helps solder flow cleanly onto a joint, along with trace amounts of whatever metal you're melting. Breathing it in occasionally is one thing, but hobbyists who solder often are generally advised to keep some kind of airflow pulling that smoke away from their face rather than letting it drift straight up past their nose.

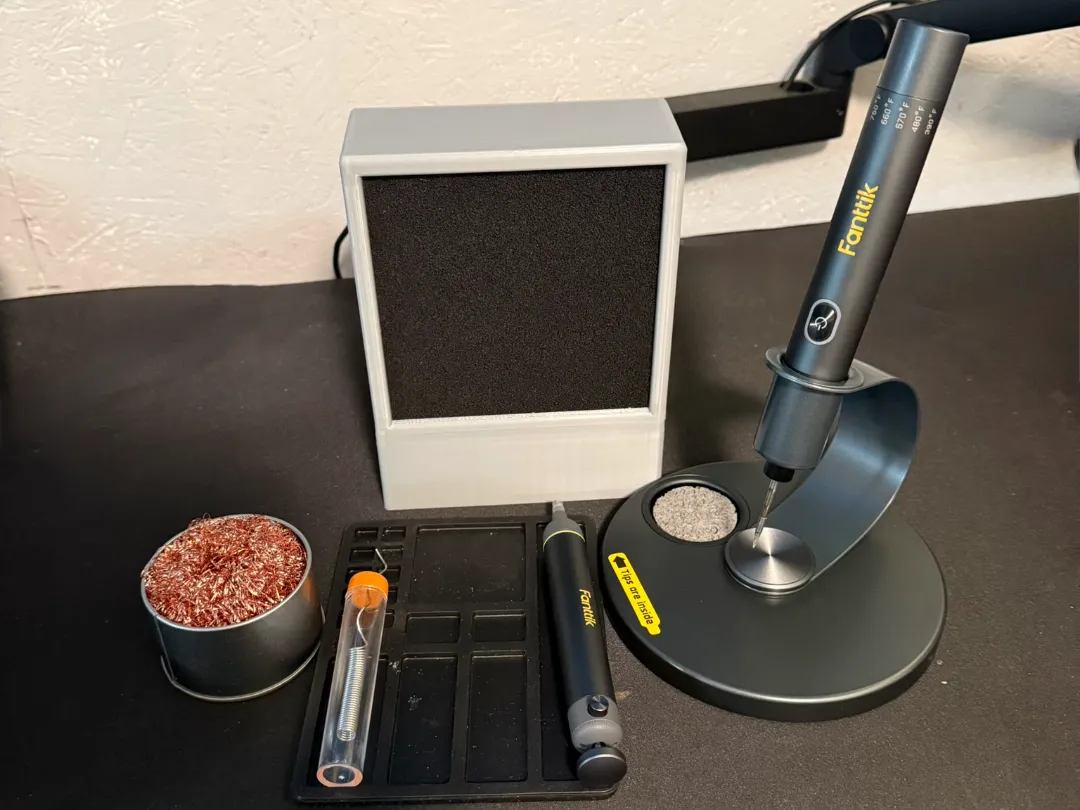

The design shared on MakerWorld keeps the build approachable on purpose. It's built around a standard 120mm PC case fan, the kind you can find in almost any desktop build or spare-parts bin, so there's no hunting for an exotic extraction motor. A replaceable filter sits in the airflow path to catch particulates before the fan pulls them through, the whole unit runs off USB-C so any phone charger or power bank can drive it, and it can optionally run on battery power when you want it untethered from a wall outlet.
Building one follows a familiar pattern for anyone who has printed an enclosure before: print the housing and filter frame, drop in a 120mm fan you already own or can grab cheaply, seat a paper or activated-carbon filter in the slot, and wire up a simple USB-C power connection. Set the finished extractor a few inches from your solder joint and angled so it pulls smoke away from your face, not toward it — and keep working in a ventilated room regardless, since no small fan replaces open air. It's also a forgiving first electronics enclosure to design yourself: the tolerances are loose, the parts are cheap to replace if a fit is off, and swapping fan sizes later is just a matter of reprinting one bracket.
Try it on your printer: A fume extractor like this is a great weekend print for anyone who solders regularly. Browse beginner-friendly filaments, cooling fans, and enclosure hardware over at Flarelab to put together your own bench-safety build.
Frequently asked questions
What's actually in solder smoke?
Mostly vaporized rosin flux plus trace metal particles. Occasional exposure is low-risk, but frequent soldering without extraction can irritate your airways over time.
Why use a 120mm PC fan instead of a dedicated extractor fan?
120mm case fans are cheap, quiet, and move plenty of air for a bench-top job — many makers already have a spare one lying around from an old build.
Do I need a battery, or can I just plug it in?
Either works. Being USB-C powered, it can run from a wall charger for constant use or from a power bank when you want to move it around the bench.
Can I reuse the filter?
The design uses a replaceable filter, so the intended workflow is to swap it out once it looks visibly dirty rather than trying to clean and reuse it.
