Ask ten makers how to support an overhang and you will get eleven opinions. Grid supports, tree supports, painted-on supports, no supports at all. Now there is a new contender that uses far less plastic: support fins.
Why supports are such a headache
An FDM printer lays molten plastic on top of the layer below. When part of your model hangs out over empty air, that plastic has nothing to sit on, so it droops or turns into spaghetti. Supports fix that by building a temporary scaffold underneath. The catch is that classic grid supports eat a lot of filament, and both grid and tree styles can leave rough, pitted patches where they touched the part. That means extra sanding before a print looks finished.

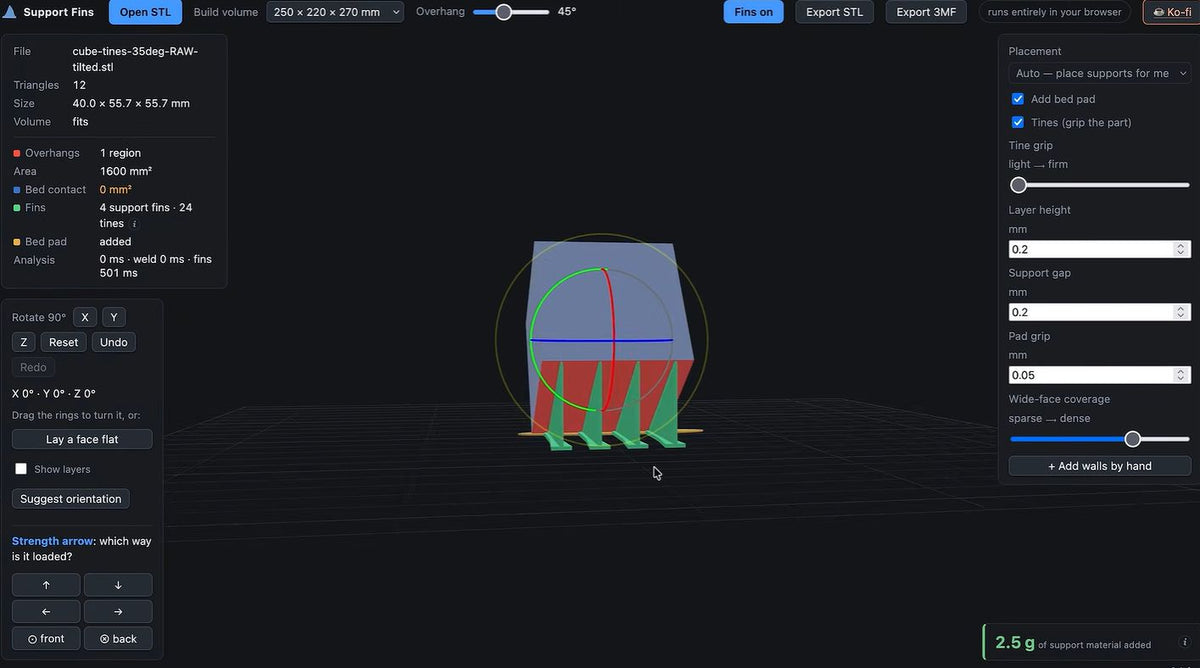

Maker Matthew Trahan built an open-source tool that swaps those scaffolds for fins: thin, upright walls that rise under an overhang and meet it along a narrow edge. Because each fin is just a sliver of plastic, it uses very little material, and the small contact area lets it snap off cleanly. Optional little tines can strengthen the joint for heavier overhangs, though they make removal a bit less tidy. The idea was first pitched by the print-farm company Slant3D, who drew fins by hand in CAD; Trahan's tool automates it. You can run it locally from its GitHub repository or use it in the browser at printfins.com.
How to try support fins
For now the tool adds fins straight into your STL file, so the process is simple. Load your model, let the tool place fins under each overhang, export the new STL, then slice it with supports turned off, since the fins already do that job. Print a small test piece first and check two things: whether the fins held the overhang flat, and how easily they break away. If they are too stubborn, reduce or remove the tines; if the overhang sags, add more fins or thicken them slightly.
Try it on your printer
Pick a model that always gives you support scars, like a bracket, a hook or a figure with outstretched arms, and print it twice: once with your usual supports and once with fins. Weigh the leftover support waste and compare the surfaces side by side. It is a quick, cheap experiment that teaches you a lot about overhangs. Need filament, tools or a ready-to-print model to test with? Browse the collection at Flarelab.
Frequently asked questions
What are support fins in 3D printing?
Support fins are thin vertical walls added under an overhang instead of a grid or tree of supports. They hold the overhang up with very little plastic and are shaped to snap away cleanly after printing.
Are support fins better than tree supports?
Not for every model. Fins shine on flat or gently curved overhangs where a thin wall can reach the part. Tree supports still win on complex organic shapes where branches need to snake around features.
Can I use support fins in my slicer?
Not natively yet. The current tool bakes fins into the STL before you slice, so you print them like part of the model. A slicer plugin has been floated as a future option, and you can also model fins by hand in CAD.
Why do my supports leave marks on the print?
Scarring usually comes from too much contact area or too small a Z gap between support and part. Fewer contact points, a slightly larger top Z distance and support interface settings all help, and that is exactly the problem fins try to solve.
