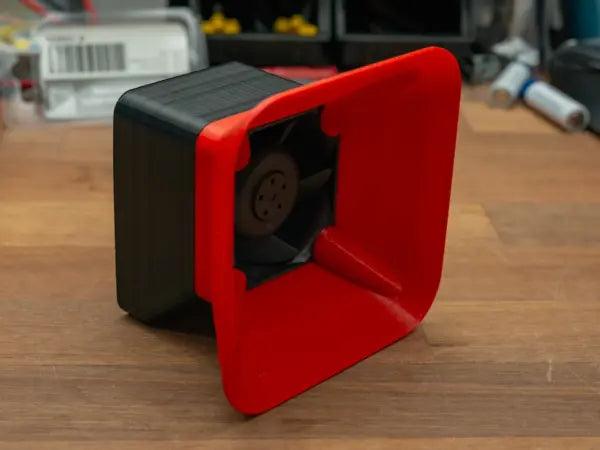

Solder fumes look like a wispy little curl of smoke, but that curl carries flux rosin, tiny metal particles, and other stuff your lungs really do not want to be around all evening. Most hobbyists just wave a hand at it and keep going — but one maker built a smarter answer: a small, quiet fume extractor made almost entirely from a fan most people would have thrown in the recycling bin.
The build doubles as an e-waste rescue project, which is part of what makes it worth copying. Instead of buying a purpose-made blower, the maker salvaged a compact high-static-pressure fan originally meant to cool the inside of a server — the kind of fan engineered to push air through tight, restrictive spaces rather than just move a gentle breeze. That matters here, because a filter adds exactly that kind of resistance, and a weak fan would barely pull any air through it at all. The catch is that fans built for server racks are loud at full tilt, easily loud enough to drown out a podcast in a small workshop. So the build adds a small microcontroller that sends the fan a reduced PWM signal, dialing it down to roughly a quarter of its top speed — quiet enough to sit right next to a soldering iron without becoming an annoyance of its own.
Everything besides the fan and the electronics is 3D printed. The housing holds a slice of a commercial replacement filter, cut down to about a centimeter thick, so fumes actually get pulled through real filter media instead of just getting stirred around and drifting toward your face anyway. Heat-set brass inserts let the case bolt together solidly with regular cap screws instead of relying on printed threads that strip out after a few uses, and the whole enclosure is shaped so it prints without any supports, which means there is no cleanup pass before you can start assembling it. If you want to build your own version, the general recipe holds even without the exact same fan: find a small high-pressure fan (a salvaged PC or server fan works well), wire in a cheap microcontroller or PWM fan controller to bring the noise down, design or download a housing sized around a filter you can cut to fit, and add heat-set inserts wherever the case needs to come apart for maintenance.
Try it on your printer: A fume extractor like this is a great first "useful object" print — it combines enclosure design, heat-set inserts, and a bit of basic electronics into one satisfying afternoon build. Browse beginner-friendly filament, printers, and hardware kits to put together your own version over at Flarelab.
Frequently asked questions
Do I really need a fume extractor for soldering?
Yes — rosin-core solder releases fumes that can irritate your eyes, throat, and lungs over time. A small extractor pulls that smoke away from your face before you breathe it in.
Can I use any old computer fan for this?
A high-static-pressure fan, like the kind used to cool servers, works best since it is built to pull air through the resistance of a filter. A basic case fan moves much less air once a filter is attached.
Why add a microcontroller instead of plugging the fan straight in?
Server fans are built to run loud and fast. A microcontroller sending a lower PWM signal lets you slow the fan to a quiet speed that is comfortable for a home workbench.
What do I need to print the enclosure?
Any FDM printer can handle a part like this — no supports are required, and heat-set brass inserts let you bolt it together with standard screws instead of depending on printed threads.
Inspired by a project from maker flummer, as featured on Adafruit. Rewritten and expanded for Flarelab readers.
