Ever finished a build and realized one tiny detail ruins the whole look? A motorbike modder hit exactly that wall when stretching the bodywork forward buried the fuel cap underneath it.
The problem: a cap you can't reach

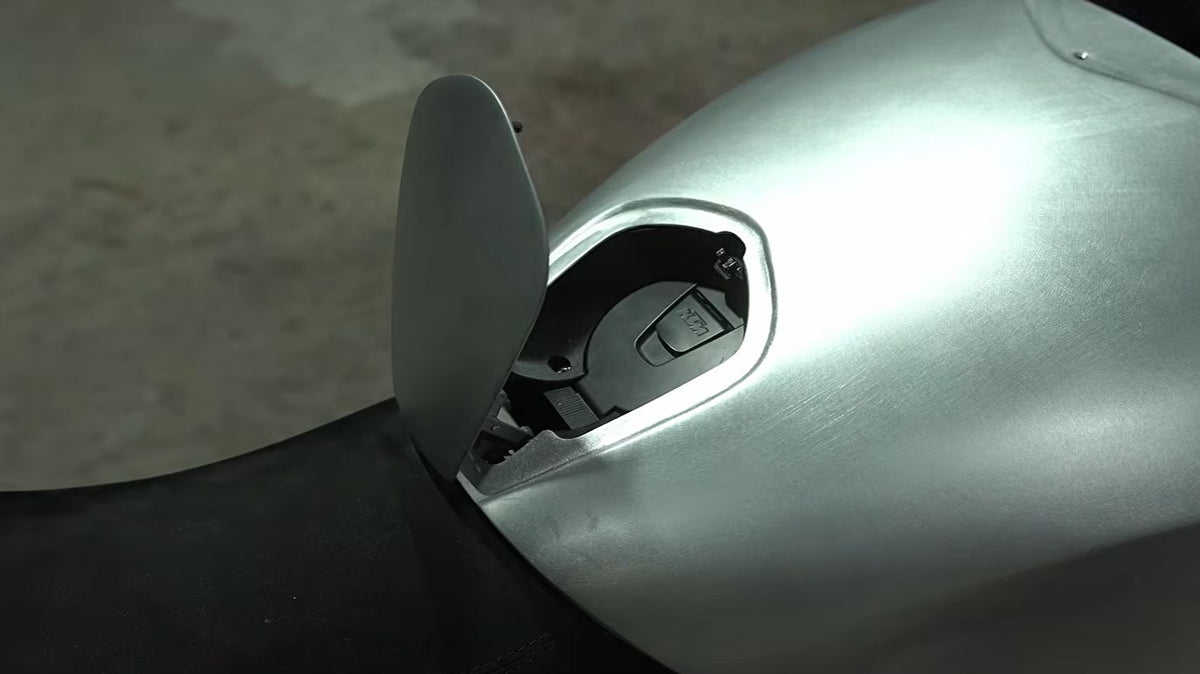

Extending a bike's tank cover looks sleek, but it leaves the filler cap hiding under the new panel. The builder didn't want a visible latch or handle spoiling the clean lines, so the goal became a panel that looks solid from the outside and still swings open when needed. That is a classic job for 3D printing, because a custom shape is cheap to make and quick to revise.
Scan, model, print
The first step was a 3D scanner to capture the real shape of the bike. Working from those measurements, the new bodywork and its hidden access door were designed to fit exactly, rather than being guessed by eye. The tricky bit was the hinge. It had to fit a very small space yet still let the panel travel far enough to give easy access to the cap, so the maker designed a custom hinge instead of buying one off the shelf.
A 3D-printed bridge piece fills the gap between the opening and the tank, and it also houses a simple push-to-open latch. Viewers in the comments did worry that the panel could pop open too easily, which is a useful reminder to test any latch before trusting it on the road.
How to design a hidden hinge of your own
Start by measuring the space with calipers (or a scanner if you have one) and leave a little clearance so parts don't rub. Print a quick low-detail prototype first to check the swing. Orient the hinge so its layers run across the pin rather than along it, add extra walls around the pivot, and choose PETG or nylon for toughness. Add a small detent or spring so the latch holds firmly.
Try it on your printer
You don't need a motorbike to practice. A small hinged box, a hidden compartment on a desk organizer, or a flip-up cover for a cable hole are great first projects. Browse printer-ready ideas and supplies at Flarelab and see how far a few well-placed millimeters can go.
Frequently asked questions
Can a 3D-printed hinge really handle everyday use?
Yes, if you design it for the load. Print the pivot area with extra walls, orient layers so they are not peeling apart along the hinge pin, and use a tough filament like PETG or nylon.
Why use a 3D scanner for a project like this?
A scanner captures the real curves of a part, so your panel and hinge fit the odd shapes of the real object instead of a guess made with a ruler.
What is a push-to-open latch?
It is a spring-loaded catch that releases when you press the panel. It keeps a cover closed without any visible handle, which is great for clean-looking builds.
Which filament should I pick for a hinge?
PETG is a friendly starting point because it flexes a little before breaking and handles warmth well. PLA is fine for prototypes, but it can crack or soften in a hot place.
Inspired by a project originally covered on Hackaday. Rewritten for beginners by Flarelab.
