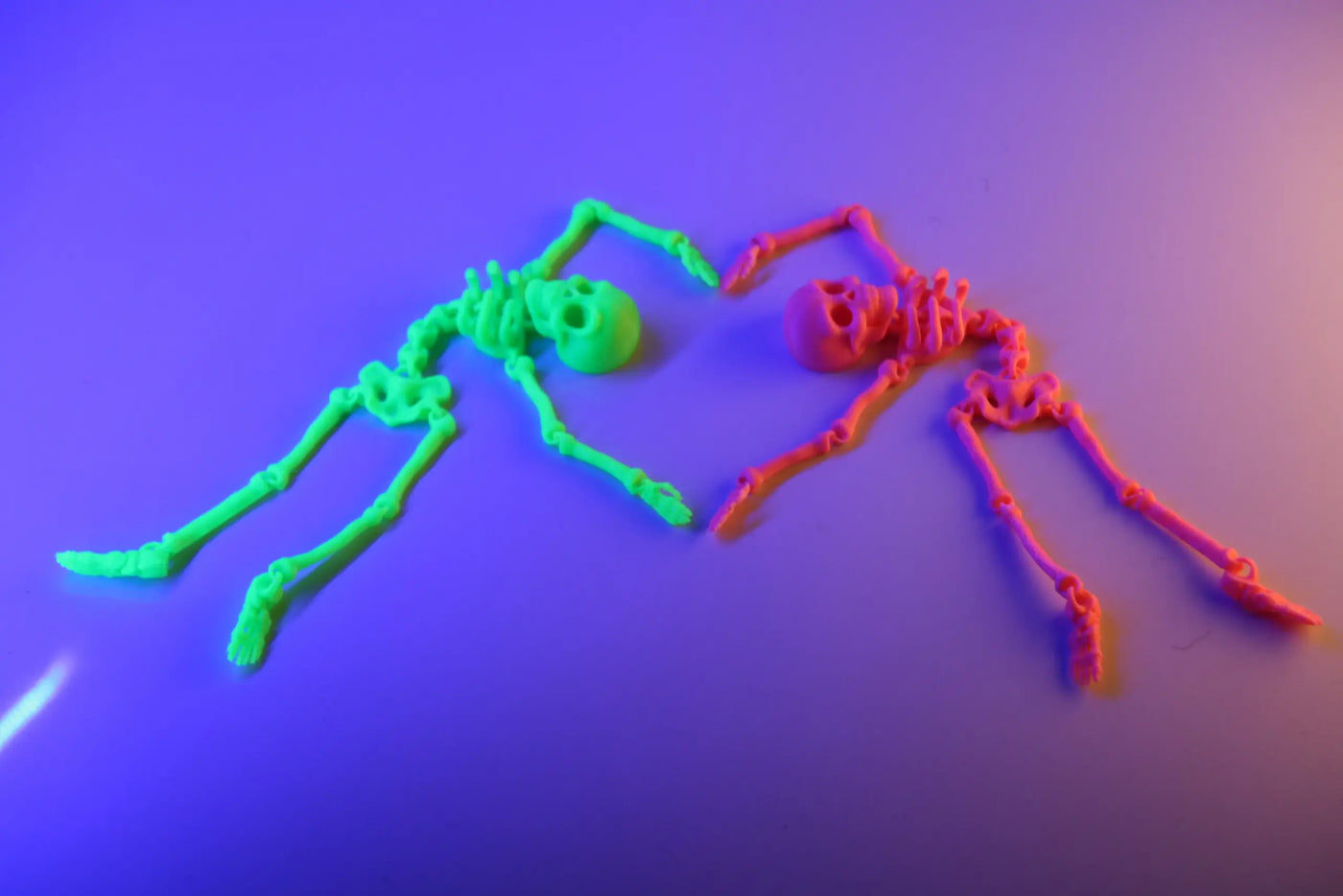

You start a print, walk away, and come back to a skeleton that already wiggles. No screws, no glue, no assembly step at all — you just lift it off the plate and start posing it. That is a print-in-place articulated model, and a flexible Halloween skeleton making the rounds on MakerWorld right now is a perfect excuse to explain how the trick actually works.
The secret is clearance. The designer models every joint — usually a ball-and-socket or a simple pin-and-loop — with a deliberate air gap between the moving surfaces, typically somewhere between 0.2 mm and 0.4 mm. Your slicer sees two separate walls across that gap and never generates a path that connects them. The printer lays down both halves of the joint in the same layers, but because no plastic bridges the gap, the parts come off the build plate already free to rotate.
The second half of the trick is orientation. A well-designed articulated model is laid out so every joint sits flat-side-down or spans only a very short bridge, which is exactly why these files ship with a "no supports" note. Add supports anyway and you will usually destroy the model: support material wedges itself into every joint gap and welds the whole thing into one rigid sculpture. It is the single most common way a first attempt fails.
To print one well, keep it boring. Use PLA at 0.2 mm layer height, leave supports off, and set your brim or skirt rather than a raft. Then check three settings that quietly eat clearance: over-extrusion, first-layer squish, and horizontal expansion. If your flow rate is a few percent high or your nozzle is dragging the first layer, the joints close up and fuse. Slow the first layer down, keep horizontal expansion at zero or slightly negative, and let the print cool fully on the plate before you flex it — warm PLA joints tear far more easily than cold ones.
Try it on your printer. Print-in-place articulated models are one of the best filament tests going, because a fused joint tells you instantly that your extrusion is running hot or heavy. Grab a jointed model, run it with a fresh spool, and see whether every segment moves. If you need reliable filament that holds tight tolerances print after print, browse the range at flarelab.com and pick a spool that will not fight your clearances.
Frequently asked questions
Do print-in-place models need supports?
Almost never. They are designed so every joint prints over a short bridge or flat surface. Turning supports on usually forces material into the joint gaps and fuses the model solid, so leave supports off unless the designer says otherwise.
Why did my articulated print come out as one stiff lump?
Either your nozzle is over-extruding and closing the clearance gap, or your first layer is squished too hard. Drop flow by 2-3 percent, re-level the bed, and make sure horizontal expansion or elephant-foot compensation is not set to a positive value.
What layer height works best for articulated prints?
0.2 mm is the sweet spot for most 3D printing setups. Finer layers look nicer but give the joint walls more chances to weld together, and coarser layers can leave joints loose and rattly.
Which filament is best for a print-in-place model?
PLA is the easiest and holds joint detail crisply. PETG is tougher but stringier, and the strings love to bridge joint gaps. Skip TPU for jointed models unless the design specifically calls for it.
