Plastic Waste to Filament: Inside the $470 Recycling Extruder

2 min readby Flarelab

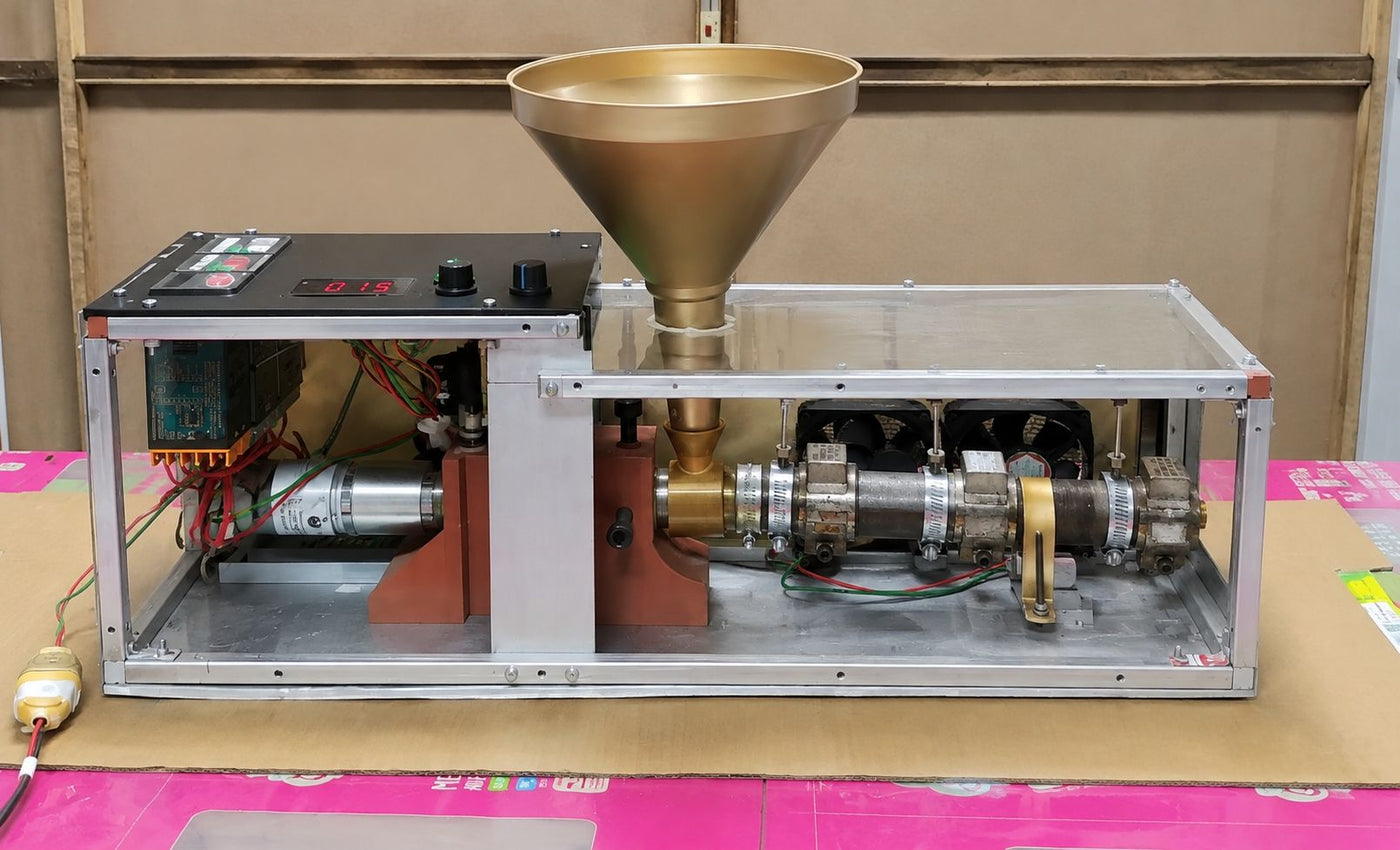

Portable low-cost extruder that converts recycled plastic waste into 3D printing filament

Every failed print, every snapped support tree, every tangled end of a spool you gave up on — it all ends up in the same sad bin beside your printer. A team of engineers in India just patented a machine that says that bin is actually a filament supply.

Researchers at the National Institute of Technology Rourkela received a patent for a portable extrusion system that grinds plastic waste and pushes it back out as composite filament for FDM printers. The headline number is the build cost: roughly 45,000 rupees, or about $470. That is less than many mid-range printers, and it reframes waste plastic as raw stock rather than trash. The five-person team came from mechanical and chemical engineering backgrounds, and the "composite" part matters — the system is designed to blend reinforcing material into the recycled feedstock instead of simply re-melting old prints into something weaker each cycle.

That degradation problem is the real reason home filament recycling has stayed niche. Every time PLA or ABS goes through a heat cycle, its polymer chains get a little shorter. Recycle the same batch three or four times and you end up with filament that's brittle, inconsistent in diameter, and prone to snapping mid-print. Diameter consistency is the other hurdle: your extruder assumes 1.75 mm, and a spool that wanders between 1.6 and 1.9 mm will under-extrude and over-extrude its way through an entire job. Low-cost machines that hold tolerance while adding reinforcement are what move recycling from a science-fair demo to something you'd actually print with.

If you want to experiment now, start by sorting ruthlessly. Keep one bin per material — PLA with PLA, PETG with PETG — because mixed polymers melt at different temperatures and produce lumpy, unpredictable filament. Shred your scrap into pieces roughly the size of commercial pellets, and dry them thoroughly before extruding; wet plastic foams and bubbles in the hot zone. Then dial in slowly, measuring diameter with calipers every metre or so and adjusting your pull speed until the reading holds steady. Expect the first several attempts to be unusable, and treat that as tuition rather than failure.

Try it on your printer. Even without an extruder of your own, you can print a benchmark cube in fresh filament and again in a recycled spool from a commercial supplier, then compare layer adhesion by snapping both. It's the fastest way to feel the difference recycling makes. Browse filament and printer gear at Flarelab and start your own side-by-side test.

Frequently asked questions

Can I really turn failed prints into new filament at home?

Yes, but it takes dedicated equipment. You need a shredder to reduce scrap to pellet size and an extruder that can hold diameter within about 0.05 mm. Machines like the patented NIT Rourkela design aim to make that combination affordable rather than industrial.

How many times can plastic be recycled into filament?

Practically, two or three cycles before the material becomes noticeably brittle. Each melt shortens the polymer chains. Blending recycled stock with virgin pellets or adding reinforcing fibre extends the useful life considerably.

Which plastics recycle best for 3D printing?

PLA and PETG are the most forgiving for hobby setups. ABS works but needs better ventilation because of the fumes. Never mix polymer types in one batch — they melt at different temperatures and produce inconsistent filament.

Is recycled filament as strong as new filament?

Usually slightly weaker, particularly in layer adhesion. For prototypes, jigs, planters, and organisational prints the difference rarely matters. For functional parts under load, stick with virgin filament or a fibre-reinforced recycled blend.


Reported by Flarelab. Source: 3D Printing Industry.
