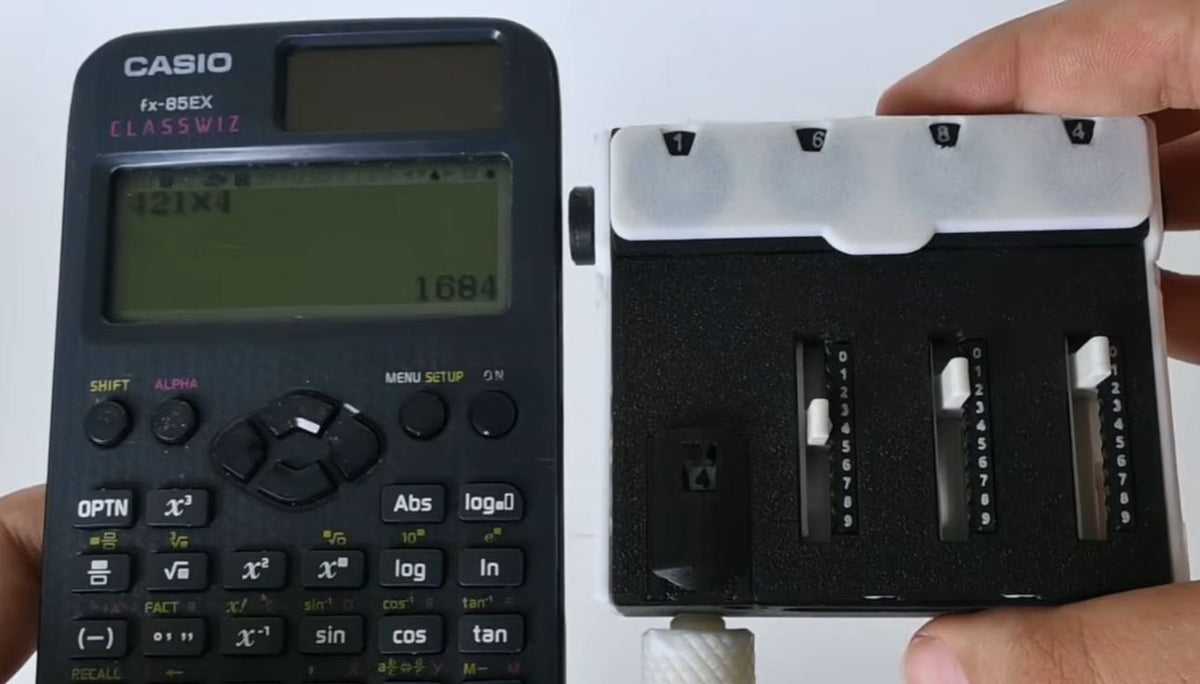

What if a calculator needed no battery, no chip, and no screen, just plastic gears you printed yourself? That is exactly the challenge a maker called 3D all Workshop took on, and the result is a surprisingly good lesson in how to print things that move.
According to Hackaday's write-up, the project took about two months and was printed entirely on an FDM machine. The calculator turns rotations into numbers: spin a dial and a set of gears moves an indicator to the right digit. Addition is the simple part. The tricky bits are the carry, where one wheel passing 9 has to nudge the next wheel along, and the multiplication feature, which asks the mechanism to repeat additions in a controlled way.
The big beginner takeaway is about tolerances. Gears only work when their teeth mesh with tiny, consistent gaps, and a 3D printer's accuracy is never perfect. The builder went through roughly a hundred design iterations, adjusting parts until everything turned freely, and even then a touch of lubricant helped. That is not a failure, it is the normal workflow for printed mechanisms: print, test, tweak, repeat.
It is also a reminder of why mechanical designs are so satisfying. Every part has a job you can see: a gear turns, a tooth catches, a digit rolls into place. Seeing the logic laid out in plastic makes it easier to understand how counters, clocks, and even simple toys work, and it gives you ideas for your own prints. If a two-month, hundred-revision project sounds intimidating, remember that your first attempt only needs to be one small mechanism that moves.
How to try printed moving parts yourself: start small with a single gear pair or a print-in-place hinge. Print a tolerance test first, with gaps from about 0.1 mm to 0.4 mm, and see which clearance moves smoothly on your machine. Use a smaller layer height for gear teeth, orient gears flat on the bed, and sand away any elephant-foot flare on the first layer. A drop of light lubricant such as PTFE or silicone grease can make a stiff mechanism feel much better.
Try it on your printer: pick a gear or mechanism model, run a calibration print, and see how your printer handles tight clearances. Browse ready-to-print files and filament-friendly projects at flarelab.com.
Frequently asked questions
Can a 3D printer really make working gears?
Yes. FDM printers can make functional gears for light-duty jobs like dials, counters, and toys. Expect to tune tolerances, and a little lubricant helps parts move smoothly.
Why did the calculator need so many design revisions?
Moving parts are sensitive to tiny errors. A gear tooth that is a fraction of a millimeter off can bind or skip, so makers print, test, adjust, and repeat until everything meshes.
What is the best filament for printed gears?
PLA is fine for learning and low-load prototypes. PETG or nylon-type filaments handle wear better. Start with PLA, then upgrade if parts wear out.
How do I stop printed parts from sticking together?
Leave a small clearance gap between moving parts, often around 0.2 mm on a well-tuned printer, and test with a small calibration print first.
