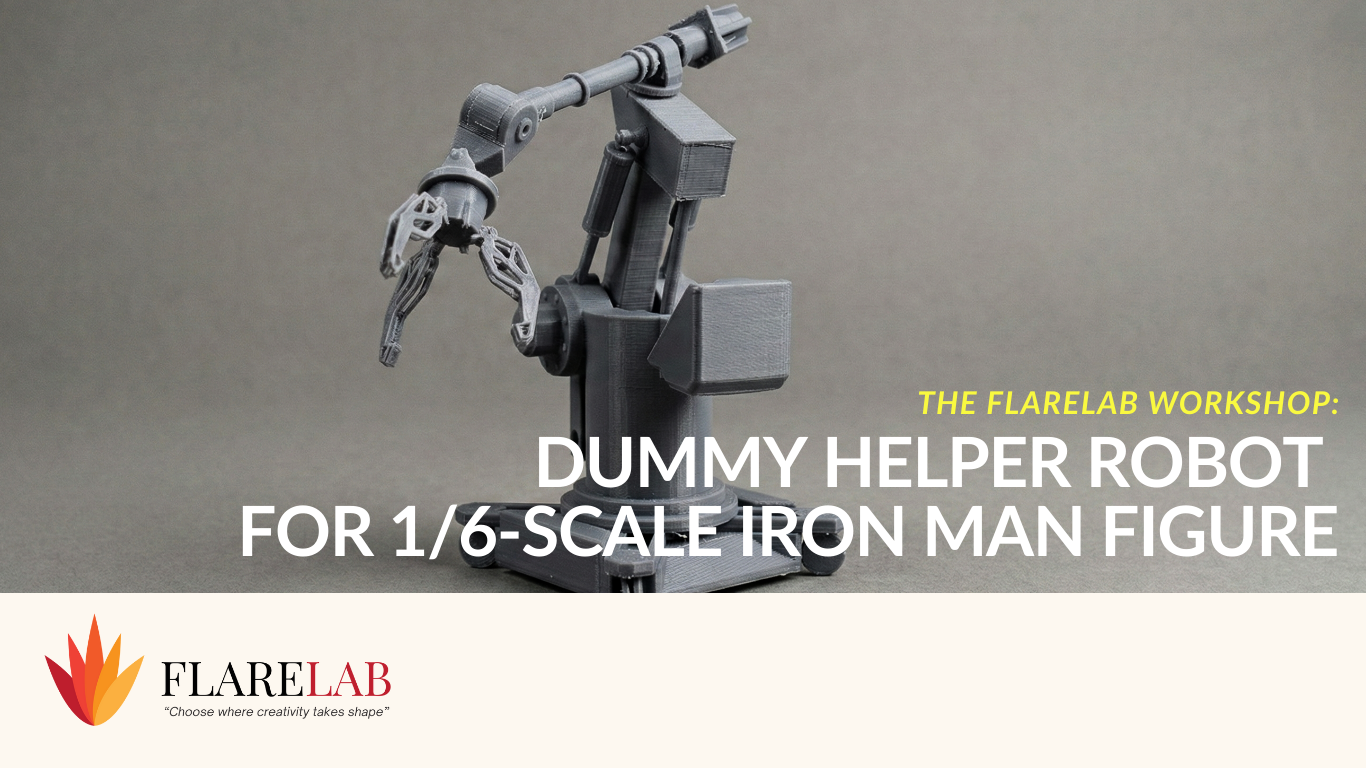

The FlareLab Workshop: Dummy Helper Robot for 1/6-Scale Iron Man Figure
For collectors and figure photographers, display pieces make all the difference. This project takes inspiration from the iconic "DUM-E" helper robot seen in the Iron Man films, redesigned and scaled to complement a 1/6-scale Iron Man figure setup. The client provided the model, and our task was to prepare it for clean, reliable printing while maintaining the character and proportions of the original design.
Refining the Model for Real-World Assembly
Even with a stylized prop like this, stability is essential. We reviewed the joints, arm segments, and base geometry to ensure each part prints cleanly and slots together without wobble. Keyed connections were added or sharpened to guide orientation, making the assembly feel intuitive and secure.
Flat surfaces were planned deliberately so hobbyists can sand, prime, and paint without fighting unwanted texture. The arm components were thickened in strategic areas to reduce flex, especially where small parts carry the most stress.
Stress Reinforcement and Print Orientation
The base and arm supports needed reinforcement since these are the parts that keep the piece upright beside the figure. We chose print orientations that avoid weak layer lines in load-bearing areas, ensuring that the robot stands stable during posing or display shifts.
Optional screw points and CA-glue spots were included for anyone wanting extra rigidity. The model also contains simple routed channels for wiring or faux cables, a small detail that adds realism once painted.
Made for Display, Ready for Custom Paint
This prop is meant to be painted, so the surfaces were prepared with post-processing in mind. Gray filament was selected to give a neutral, primer-friendly base that works well with metallics, weathering, and film-accurate color schemes.
After 4 hours and 38 minutes of print time, the final output is smooth, sturdy, and fully ready for customization — from clean showroom finishes to worn lab-equipment looks.
Material Used: Gray Filament
Total Printing Time: 4 hrs 38 mins
Frequently asked questions
What scale is the Dummy Helper robot designed for?
The model is sized to match standard 1/6-scale figures, which makes it the right proportion next to a 12-inch Iron Man figure (Hot Toys, S.H. Figuarts large-scale, etc.). Flarelab can scale it for 1/12 or 1/4 figure setups on request.
How long does the print take?
This particular print finished in 4 hours 38 minutes. With higher detail settings or larger scaling, expect 6–8 hours.
Can the arm be posed?
The model has keyed joints designed for secure assembly rather than free articulation. For poseable arms, the joints can be modified to accept friction joints or magnetic connectors — ask Flarelab for the poseable variant.
What's the best way to paint it?
Sand the surface lightly, apply a filler primer to smooth layer lines, then build up with metallic paints (Vallejo, AK, or Tamiya all work well). A black-and-orange industrial color scheme matches the film prop, while bare metal looks great for a clean showroom build.
Will I need supports?
Yes for arm segments and detail components. Tree supports leave the cleanest finish and are easier to remove from rounded surfaces than grid supports.
