FlareLab Workshop: ESP32 Drone Frame – Custom 3D-Printed Chassis

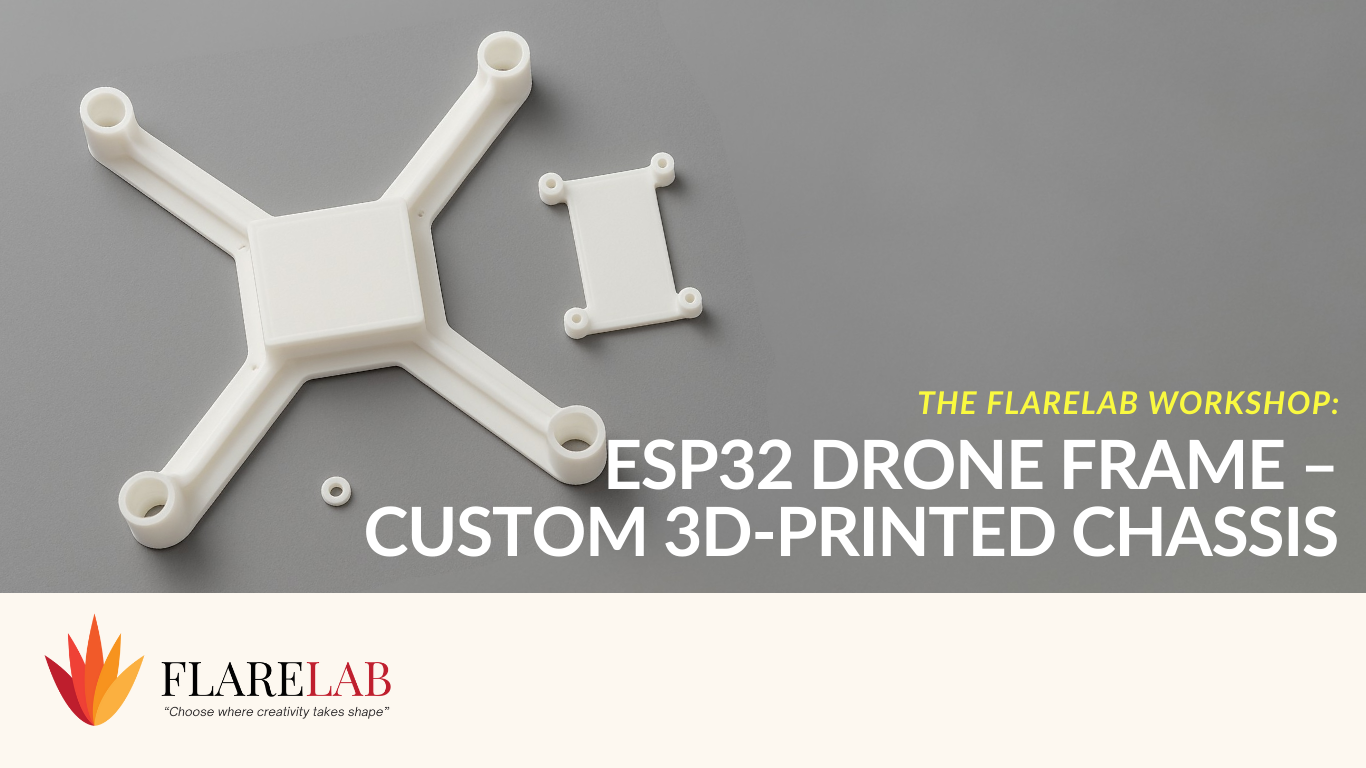

When a school project calls for flight-worthy hardware, every gram, angle, and tolerance matters. For this build, our client needed a lightweight yet rigid drone chassis designed to house an ESP32, motors, and essential wiring. They provided the model, and our job was to turn that digital file into a structurally sound, print-ready frame optimized for real test flights.
From Model to Air-Ready Frame
Even with a supplied design, preparing a drone chassis for printing isn't plug-and-play. We inspected the model for weak points, stress areas, thin walls, and potential printing failures. Drone frames experience vibration, twisting, and impact forces, so ensuring the geometry could survive those conditions was key.
We refined the file's orientation, added support strategies, and made sure the arms and mounting points would retain strength without adding unnecessary weight.
Balancing Strength, Flex, and Weight
Because flight performance depends on mass, we tuned the print settings to find that sweet spot between rigidity and minimal filament usage. White filament was chosen for clean visibility during inspection and flight testing — making cracks, stress marks, and structural behavior easier to monitor.
We printed using a fine layer height to preserve detail and bolster durability in critical attachment points. The result: a lightweight frame that stays strong where it counts.
Print Time and Output
Despite being a functional part for a drone, this chassis printed fast and efficiently:
Total Print Time: 1 hr 25 mins
Material Used: White Filament
The final output came out clean, balanced, and ready for the client's assembly and flight evaluation.
Frequently asked questions
What microcontroller does this drone frame fit?
The chassis is designed around the ESP32, which fits inside the central body bay. Mounting holes match the standard ESP32 dev board footprint. With small adjustments, it can also fit Arduino Nano or Raspberry Pi Pico boards.
How much does the printed frame weigh?
Printed in PLA at 15–20% infill, the bare frame typically weighs 35–55 grams depending on size. Light enough to keep flight times reasonable while still rigid enough to handle motor torque.
What filament should I use for a drone chassis?
PLA works for indoor builds and gentle flying. PETG is tougher and survives crashes better. For competition or outdoor builds where weight matters less, carbon-fiber-infused PLA or PETG gives the best stiffness-to-weight ratio.
Will it survive a crash?
It depends on the crash. Light bumps and ground touches won't break a well-printed frame. Hard impacts at speed can crack arms — the segmented design makes it easy to reprint a single arm rather than the whole chassis.
What slicer settings should I use?
0.4 mm nozzle, 0.16–0.2 mm layer height, 3 wall perimeters, 15–20% gyroid infill. Print arms with their long axis along the X or Y direction so layer lines don't run perpendicular to flight stress.
Can Flarelab print a custom drone frame for me?
Yes. Send your motor specs, ESP32 board, and intended use to flarelab.com and the team will adapt the chassis or design a new one to fit your build.
